KB1021: How do I define a multi-dimensional array?

010 Editor currently only supports one-dimensional arrays in Templates; however, 2D or 3D arrays can be read with 010 Editor using structures. For example, a 4 by 4 matrix could be defined by the type:

    typedef struct
    {
       float row[4];
    }
    MATRIX[4];

Then matrices can be defined in your template like this:

    MATRIX m;

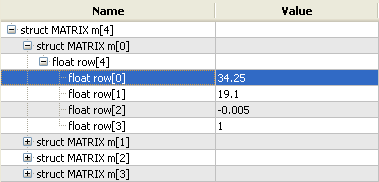

After running the Template, the results will look like this:
